Brand GIGABYTE
Series AORUS

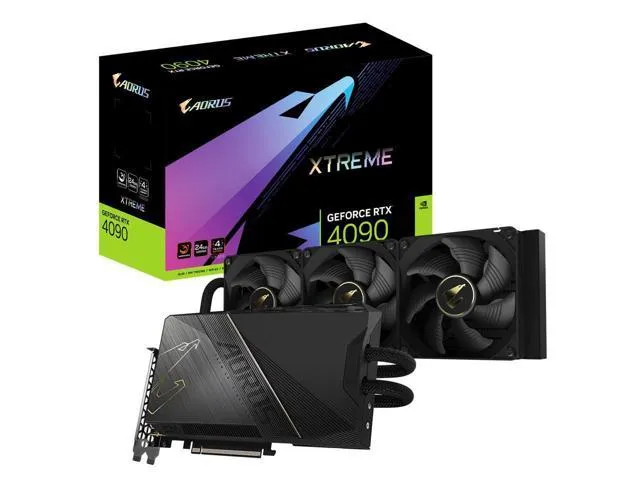

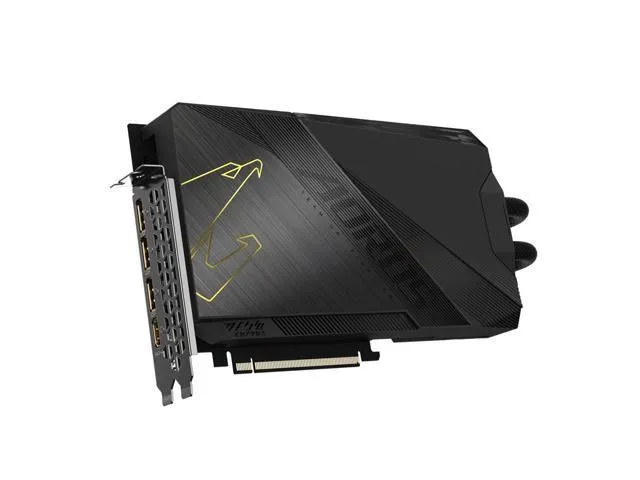

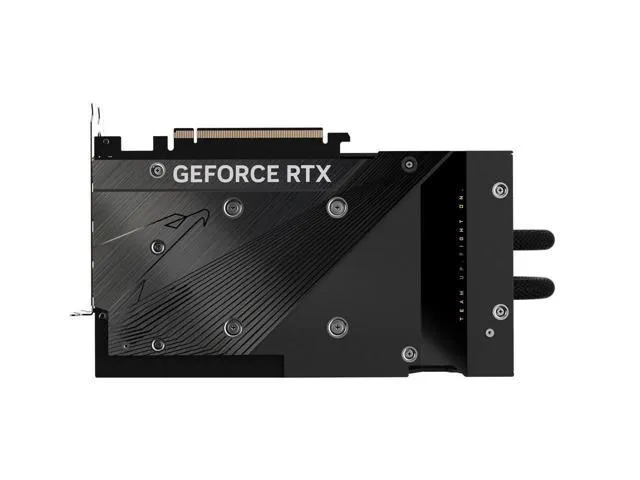

Model GV-N4090AORUSX W-24GD
Interface
Interface PCI Express 4.0
Chipset
Chipset Manufacturer NVIDIA
GPU Series NVIDIA GeForce RTX 40 Series
GPU GeForce RTX 4090
Core Clock 2565 MHz
CUDA Cores 16384
Memory
Memory Size 24GB
Memory Interface 384-Bit
Memory Type GDDR6X
3D API
DirectX DirectX 12 Ultimate
OpenGL OpenGL 4.6
Ports
Multi-Monitor Support 4
HDMI 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 1.4 a
Details
Max Resolution 7680 x 4320

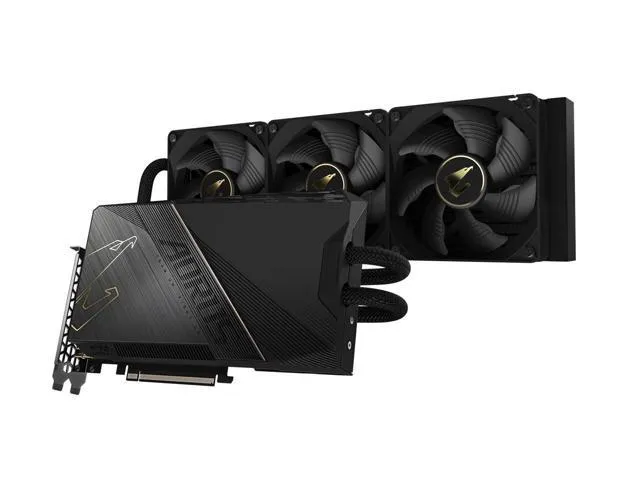

Cooler Triple Fans
Thermal Design Power 450W
Recommended PSU Wattage 850W
Power Connector 1 x 16-Pin
Form Factor & Dimensions
Form Factor ATX
Max GPU Length 238 mm

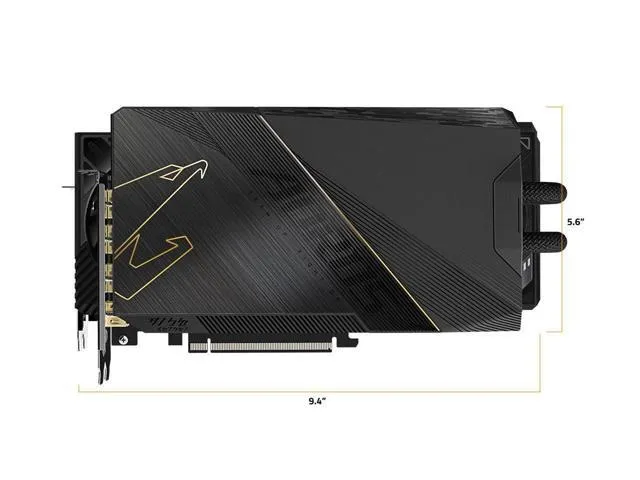

Card Dimensions (L x H) 238 x 141 x 40mm
Packaging
Package Contents Quick guide
Warranty registration
AORUS Metal sticker
Xtreme Robot Limited Edition with AORUS flag
One 16-pin to four 8-pin power adaptor
